Last update
$Date: 2017/11/09 00:40:54 $

All schematics in this page are copyrighted © by Claudio Lanconelli, you need my permission before to publish them in your site, magazine or other media.

Some adapters are not available as GIFs. Look at PDF file, please.
Complete schematics are available in Acrobat PDF file format:

SI-Prog 2.2 : current board in production

NB: AT17Cxx eeprom use the same socket as DS1621 (U10 in the PDF schematics. X2444 use the same socket as 93Cxx (not rotated pinout). MDA2061/MDA2062 are similar to NVM3060, but they also need a 20V at pin 3 and 1KHz clock at pin 13.


  Base board



Click here to enlarge

SI-Prog base: connect it to the PC DB9 serial port.
You can connect any of the following adapter card to the 10 pin connector. The interface sinks current from the PC serial port, so it doesn't need any external power.



  AVR microcontroller adapter


AVR 20 pin (AT90S1200, AT90S2313) connect diagram to base board



AVR 40 pin (AT90S4414, AT90S8515) connect diagram to base board



AVR 8 pin (AT90S2323, AT90S2343, ATtiny12) connect diagram to base board



 ATmega microcontroller adapter



ATmega103 / ATmega128 connect diagram to base board
Note that this AVR don't use MISO, MOSI pins for SPI programming, instead use PE0, PE1


  Atmel core51 microcontroller adapter



AT89S8252/AT89S53 connect diagram to base board



  PIC 12/16 adapter


Click here to enlarge

PIC16F8xx and PIC12C50x connect diagram to base board


  I²CBus eeprom adapter



I2C Bus eeprom (24Cxx, SDE2516, ...) connect diagram to base board

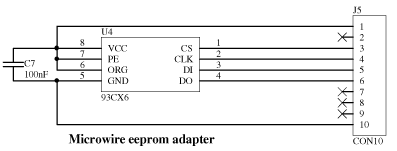

  Microwire eeprom adapter



Microwire eeprom (93Cx6) connect diagram to base board



  SPI eeprom adapter



SPI eeprom (25xxx, 95xxx) connect diagram to base board



  SDE2506 eeprom adapter



SDE2506 connect diagram to base board



  NVM3060 eeprom adapter


NVM3060 connect diagram to base board

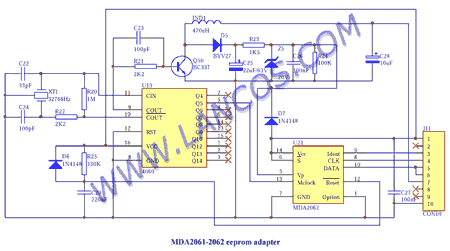

  MDA2061 MDA2062 eeprom adapter


Click to enlarge

MDA2062 connect diagram to base board
